Project : Cable Carousel, Amsterdam
Type : Infrastructure
Status : Built
Client : Ocean Team Shipping
Architect : 3D BluePrint
Area : 301 Sq.mts.
Information :

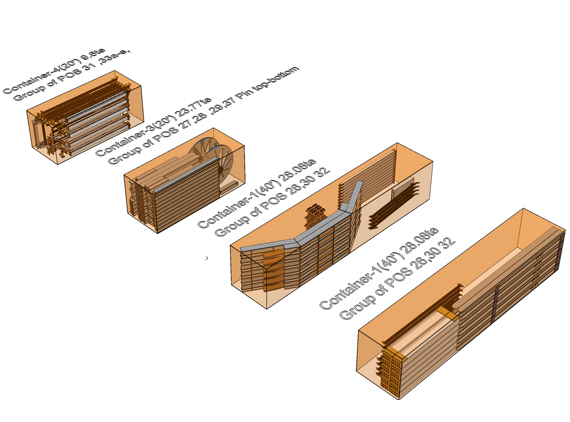

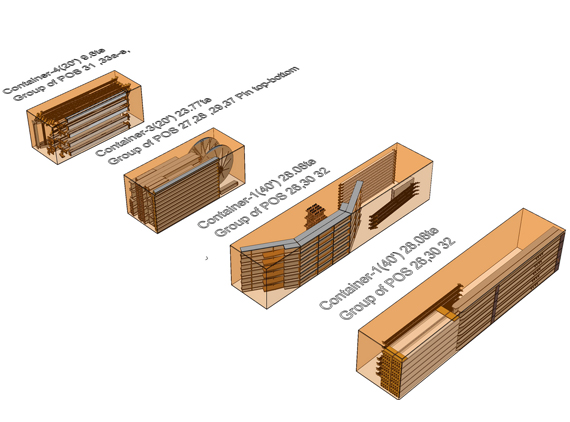

3D BluePrint was assigned to design and develop an unique cable carousel of 1250 tone capacity which can be delivered by road, rail or vessel anywhere in the world and suitable for self assembly. System is self contained and can be assembled on the quayside or the vessel.

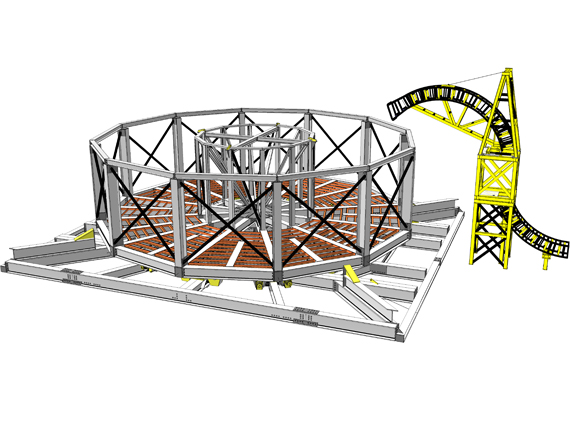

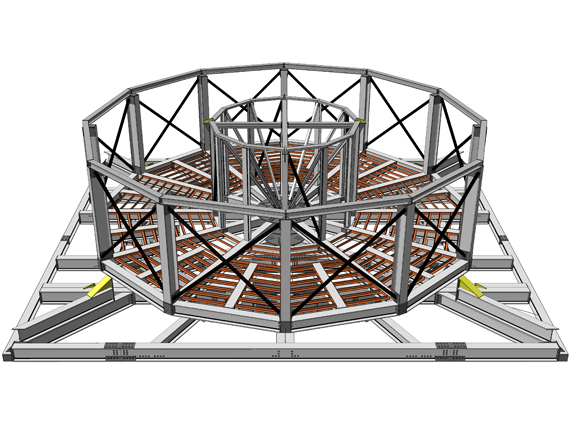

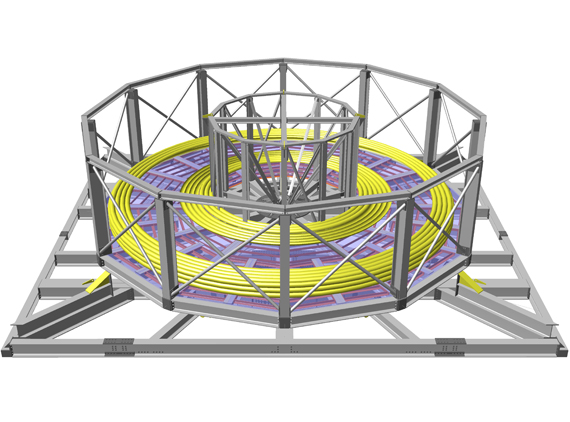

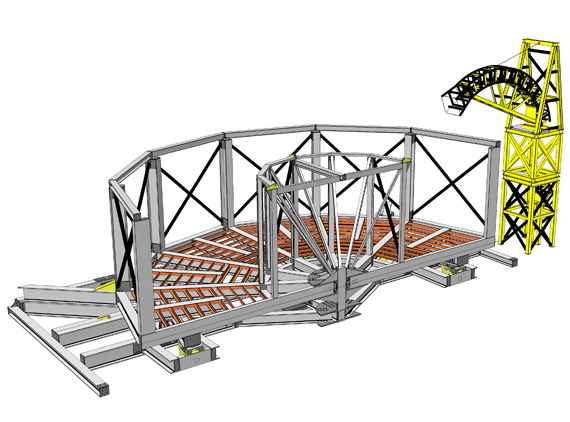

Basket Carousel system comprises basket, Spider frame base, Gooseneck tower and 20ft containerised HPU. The basket is rotated by electrically driven under-rollers. The basket can be raised or lowered via jacking cylinders on the spider frame under-rollers.
